Bridgestone VX-Tractor tyre

VX-Tractor Tyre

More traction.
For longer.

Main features

Traction

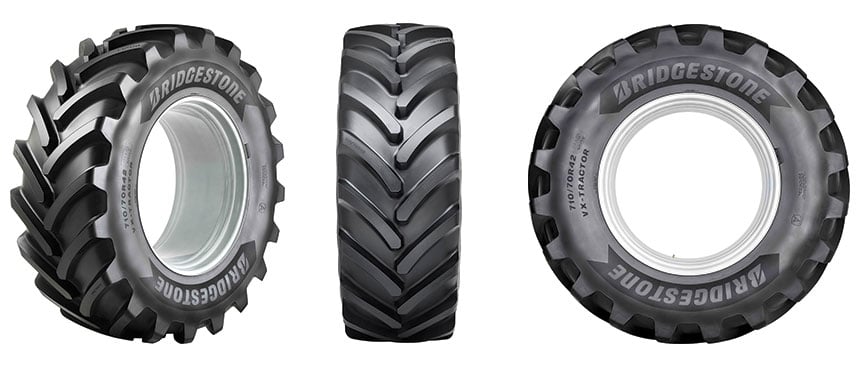

Superior traction. Involute, exclusive and patented lug design

  • Tread pattern has an ‘involute’ lug pattern. The tractive forces on the soil are horizontally oriented and optimize their energy in a forward movement.

Involute lug = more traction, less compaction

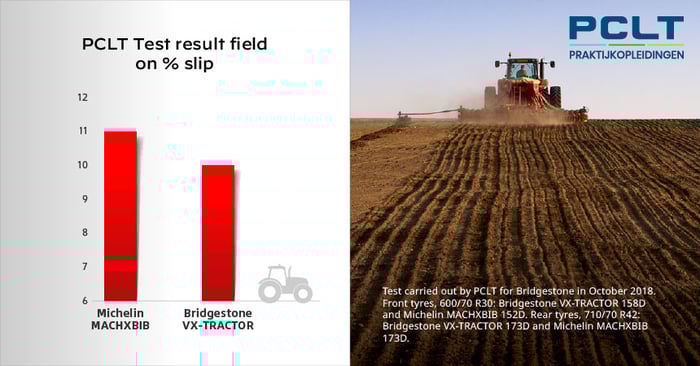

  • The involute tread design was also tested in the field by an independent testing company. This test was made using a Fendt tractor and it reveals that the VX-TRACTOR can pull more force under lower slip%.
VX-Tractor tyre = more traction, less slip

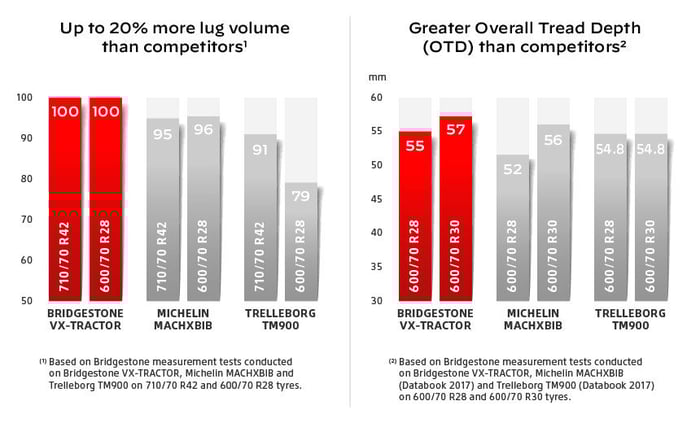

Up to 20% more rubber volume

  • VX-TRACTOR will push the boundaries of tyre performance, and one key unique selling point is the rubber volume. More rubber will contribute to better traction and longer life.

VX-Tractor tyre = Up to 20% more rubber volume


Pressure

Wide range of pressure between 0.6 till 2.4 bar

  • Load bonus on field cycling activities from 2.6 to 3 bars, at 10 or 15 km/h

Load capacity

Extra Load capacity and durability

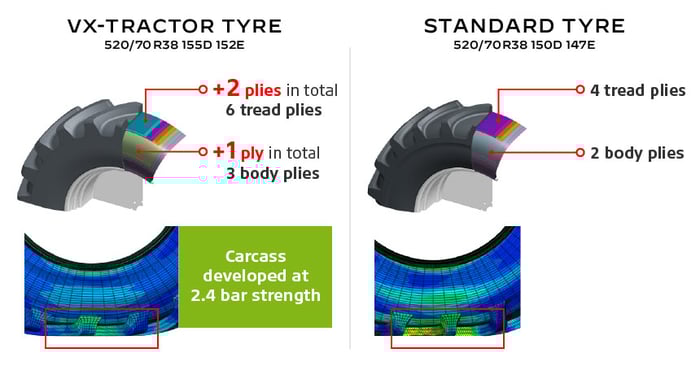

  • The VX-TRACTOR is a solid tyre: it has been developed for higher inflation pressure, up to 2.4 bar. Well conventional tyres (and here I mean no IF nor VF technologies) are usually developed at an inflation rate of 1.6 bar.
    This results in a reinforced tyre construction of the carcass. As an example, the 520/70R38 has 3 body plies and 6 tread plies. As I told you in the beginning of this webinar, VX-TRACTOR is a strong tyre.
  • The body ply construction allows smooth damping of the sidewalls from 0 till 70 km/hr.

VX-Tractor tyre = Extra Load capacity and durability

Reduction of operating costs

Better wear resistance based on rubber volume and outstanding tread compound

  • The rubber compound itself is made more resistant to wear. This comes because we have added more ‘vegetable oil’ in the compound which makes it both more wear and more cut resistant.

Self-cleaning

Very good

Driving comfort and safety

Excellent comfort and increased safety

  • Tread design with lug overlapping centrally provides a very good drive comfort.
  • Casing construction and load resistance increase security on road and field.

Wear AND Damage resistance

Better wear resistance based on rubber volume and outstanding tread compound

  • The rubber compound itself is made more resistant to wear. This comes because we have added more ‘vegetable oil’ in the compound which makes it both more wear and more cut resistant.

Up to 20% more rubber volume

  • VX-TRACTOR will push the boundaries of tyre performance, and one key unique selling point is the rubber volume. More rubber will contribute to better traction and longer life.

Fuel consumption

Better traction provided by VX-TRACTOR contributes to optimize fuel consumption.

Return on investment

Optimum

Stability

Excellent stability due to strong casing, tread design and S-Line bead technology which secures connection between rim & tyre. So better security and performance even with very high load.

Product range

Construction

Radial

Technology

Standard

Line-up

56 tyre size – Rim size: 16 at 42 inch

RIM SIZE DIMENSION SPEED-LOAD INDEX
16 260/70 R16 109D - 106E
280/70 R16 112D - 109E
320/65 R16 117D - 114E
24 320/85 R24 127D - 124E
340/85 R24 130D - 127E
360/70 R24 127D - 124E
380/70 R24 130D - 127E
380/85 R24 137D - 134E
420/70 R24 136D - 133E
440/65 R24 135D - 132E
480/65 R24 140D - 137E
480/70 R24 143D - 140E
540/65 R24 146D - 143E
28 320/85 R28 129D - 126E
340/85 R28 133D - 130E
380/70 R28 133D - 130E
380/85 R28 139D - 136E
420/70 R28 139D - 136E
420/85 R28 144D - 141E
440/65 R28 138D - 135E
480/65 R28 142D - 139E
480/70 R28 145D - 142E
540/65 R28 149D - 146E
600/65 R28 154D - 151E
600/70 R28 157D - 154E
30 380/85 R30 140D - 137E
420/85 R30 145D - 142E
460/85 R30 150D - 147E
480/70 R30 147D - 144E
540/70 R30 158D - 155E
600/65 R30 150D - 147E
34 420/85 R34 147D - 144E
460/85 R34 152D - 149E
480/70 R34 149D - 146E
540/65 R34 152D - 149E
600/65 R34 157D - 154E
600/70 R34 160D - 157E
38 420/85 R38 149D - 146E
460/85 R38 154D - 151E
480/70 R38 151D - 148E
520/70 R38 155D - 152E
520/85 R38 160D - 157E
540/65 R38 153D - 150E
580/70 R38 160D - 157E
600/65 R38 159D - 156E
650/65 R38 163D - 159E
650/75 R38 169D - 166E
650/85 R38 173D - 170E
710/70 R38 171D - 168E
42 460/85 R42 156D - 153E
520/85 R42 162D - 159E
580/70 R42 162D - 159E
620/70 R42 166D - 163E
650/65 R42 165D - 161E
710/70 R42 173D - 170E
710/75 R42 175D - 172E



This information is intended only to make you aware of the technical and functional aspects of agricultural tires and their use. It does not allow you to make a judgment or a definitive conclusion on a given problem. Only your agricultural tire expert is able to make a technical assessment and take a final decision, case by case.
